The future of mining operation workflows with Seequent

Overview

Video Transcript

[00:00:00.012]
(upbeat music)

[00:00:10.000]
<v Peter>Welcome everyone, and thanks for joining us here</v>

[00:00:12.250]
at PDAC 2021.

[00:00:14.260]
I hope that you’re having a good conference

[00:00:16.400]
and making lots of good connections.

[00:00:18.530]
My name is Peter Oshust,

[00:00:19.970]
I am a senior project geologist with Seequent

[00:00:22.290]
based in Vancouver.

[00:00:24.070]
I will be your moderator for this presentation

[00:00:26.120]
of the future of mining operations workflows at Seequent.

[00:00:30.120]
And it is also my pleasure to introduce our speaker,

[00:00:32.920]
Ryan Lee.

[00:00:34.610]
Ryan is the product manager for production geology

[00:00:37.310]
and mining operations

[00:00:38.420]
on the Seequent production management team.

[00:00:41.140]
He holds a master of science in geology

[00:00:42.960]
from the University of Waikato at Hamilton, New Zealand.

[00:00:47.960]
Ryan began his professional career working

[00:00:50.060]
on mineral exploration projects in New Zealand

[00:00:53.000]
before joining Seequent in Christchurch

[00:00:55.400]
to become a software developer.

[00:00:57.680]
He is an expert user in Leapfrog Geo and Seequent Central.

[00:01:02.170]
And has contributed to the development

[00:01:04.010]
of many key features across both products.

[00:01:07.080]
And with that, I welcome Ryan.

[00:01:08.930]
The floor is yours.

[00:01:11.240]
<v Ryan>Thanks Peter.</v>

[00:01:13.770]
So today I’m going to be talking to you about

[00:01:15.760]
what Seequent is doing to better support you

[00:01:18.020]
in your mine operations.

[00:01:19.920]
And I’ll be covering many of the new exciting features

[00:01:22.330]
that are coming up.

[00:01:26.600]
So before we get started, I just want to point out

[00:01:28.620]
that this presentation is about the future.

[00:01:31.420]
And so we are making some forward looking statements

[00:01:33.720]
and what you see here today may change.

[00:01:39.980]
So, Seequent has a range of solutions across

[00:01:43.240]
the mining value chain,

[00:01:44.220]
spanning from discovery

[00:01:45.450]
through to recovery of the resource

[00:01:47.630]
and through to restoration.

[00:01:49.610]
And we’re working to create an interconnected ecosystem

[00:01:52.470]
of solutions between all our products.

[00:01:55.400]
In the mining operation space,

[00:01:57.280]
we have Leapfrog Geo

[00:01:58.500]
or as market leader in geological modeling,

[00:02:00.760]
Leapfrog Edge for its estimation capability,

[00:02:03.310]
and then a whole host of data management solutions,

[00:02:05.840]
including central, depth, and it mesh deposit.

[00:02:09.160]
For geotechnical analysis we have GeoStudio,

[00:02:12.880]
and typically we’ve been really strong

[00:02:14.200]
in the exploration space.

[00:02:15.600]
And we’re now committed to investing

[00:02:17.050]
into production geology,

[00:02:18.680]
and ensuring that you have that same great user experience

[00:02:21.540]
when it comes to your daily mine operations.

[00:02:25.530]
So Seequent’s been in the mining industry

[00:02:28.126]
for many years now,

[00:02:30.090]
and over that time, we’ve observed several industry trends

[00:02:33.460]
and many of the pin points that our users have.

[00:02:38.090]
The first one, which is the biggie, is data management.

[00:02:41.210]
More operational data is being captured every day.

[00:02:44.300]
And this is rapidly increasing

[00:02:46.740]
as data capture and creation becomes easier.

[00:02:49.760]
It is going to be crucial for operations

[00:02:51.900]
to effectively manage that data

[00:02:53.390]
and to ensure that value is being captured from the data.

[00:02:58.460]
As teams get bigger and remote work becomes more prevalent,

[00:03:02.690]
it is going to be really, really important

[00:03:06.510]
that collaboration and being able to work together

[00:03:09.060]
in parallel on that same geoscience data

[00:03:11.570]
needs to be made more possible.

[00:03:15.790]
And with multiple teams working on that same data,

[00:03:18.830]
versioning becomes important.

[00:03:20.420]
Being able to track who did what and what they changed.

[00:03:24.620]
And it is quite hard

[00:03:25.590]
to track conversion geoscience data today,

[00:03:27.800]
and more importantly,

[00:03:29.030]
to see how that data is changing and evolving through time.

[00:03:33.990]
What we see is that there’s quite often that version control

[00:03:37.280]
is not existent, or it’s done manually.

[00:03:42.240]
As you all know,

[00:03:43.338]
in mining operations,

[00:03:44.970]
it’s the time and speed of the workflow which is crucial.

[00:03:47.990]
That needs to be fast and repeatable.

[00:03:50.370]
And this often means that scripts and macros are created

[00:03:53.370]
to cater for that workflow.

[00:03:54.580]
And that workflow probably cumbersome to begin with.

[00:03:58.180]
And the problem is that those scripts

[00:03:59.620]
become harder to maintain or understand over time.

[00:04:02.850]
And they become a bit of a black box as to how they work.

[00:04:06.560]
And that becomes a problem when it gets to auditing

[00:04:09.540]
and understanding how decision was made

[00:04:11.760]
or how a particular value came to be.

[00:04:16.160]
In terms of reporting,

[00:04:18.000]
most operational reports are still done using Excel

[00:04:20.550]
and compiled from manually into data,

[00:04:22.770]
which can be prone to error.

[00:04:25.600]
And finally integrations.

[00:04:26.930]
We know that it takes a lot of software to operate a mine

[00:04:30.593]
and the software needs to be able to communicate

[00:04:33.170]
and exchange data and work together seamlessly

[00:04:36.590]
to ensure your operation is as productive as it can be.

[00:04:42.160]
So our objective is to address these challenges

[00:04:46.680]
by building new software that makes mining geology easier.

[00:04:51.130]
And enables you to understand the results

[00:04:53.600]
and to create workflows that ensure the maximum value

[00:04:56.730]
from your whole body is being captured.

[00:05:02.780]
So our approach to addressing these problems

[00:05:05.590]
is with Seequent Evo,

[00:05:07.510]
and that is connecting together

[00:05:08.760]
our powerful desktop applications

[00:05:10.600]
with a whole suite of cloud capability.

[00:05:13.090]
While also integrating with other products and partners

[00:05:15.670]
through open APIs.

[00:05:17.320]
And that will form an ecosystem of connected solutions.

[00:05:20.950]
If you want to learn more about Seequent Evo,

[00:05:22.450]
there’s a presentation on it yesterday by Penny,

[00:05:25.440]
and you’re able to watch the recording.

[00:05:30.670]
So we’ve been working really hard on improving

[00:05:33.190]
the capability of Leapfrog for mining operations,

[00:05:35.667]
and we have a bunch of new features coming out very soon.

[00:05:39.190]
I’ll go through each one of these points in more detail

[00:05:41.480]
on the following slides.

[00:05:43.200]
But what we have coming out is a new octree sub block model.

[00:05:49.770]
The ability to import sub block models,

[00:05:52.730]
multiple drillhole databases, and grouped mesh evaluations.

[00:05:57.770]
Following on from that release,

[00:06:00.420]
we’re working on introducing slicer sets,

[00:06:03.630]
new block model visualization options,

[00:06:05.990]
proportional weighting on block models,

[00:06:08.110]
and upgrading the polyline tool.

[00:06:11.640]
And looking further out to the future,

[00:06:13.730]
supporting the importing of block models

[00:06:15.687]
in Leapfrog and Central and opening up more of our APIs

[00:06:19.700]
for additional integrations and partnerships.

[00:06:25.850]
So these next few features that are coming soon,

[00:06:29.050]
it’s not everything coming soon,

[00:06:30.520]
in the next three Leapfrog.

[00:06:31.540]
These are just the, a few of the highlights

[00:06:33.750]
stand out features that will really help you

[00:06:36.100]
in your mining operations.

[00:06:38.070]
And you can expect these to come out

[00:06:40.500]
in about May this year.

[00:06:45.860]
So we have a brand new block model,

[00:06:47.240]
which is an octree style block model.

[00:06:49.970]
Now this new block model in Leapfrog

[00:06:52.490]
is much more efficient than an existing sub block model,

[00:06:55.110]
and it will create field sub blocks

[00:06:56.680]
along geological context.

[00:06:58.760]
And this makes it faster for processing.

[00:07:01.400]
It also now supports variable block size.

[00:07:03.960]
So you can have different size blocks

[00:07:05.300]
in the X, Y, and Z axis.

[00:07:08.490]
And with this,

[00:07:09.323]
we’re also supporting the input of sub block models

[00:07:11.280]
into this new format.

[00:07:12.440]
And I’ll talk to that in a sec.

[00:07:18.260]

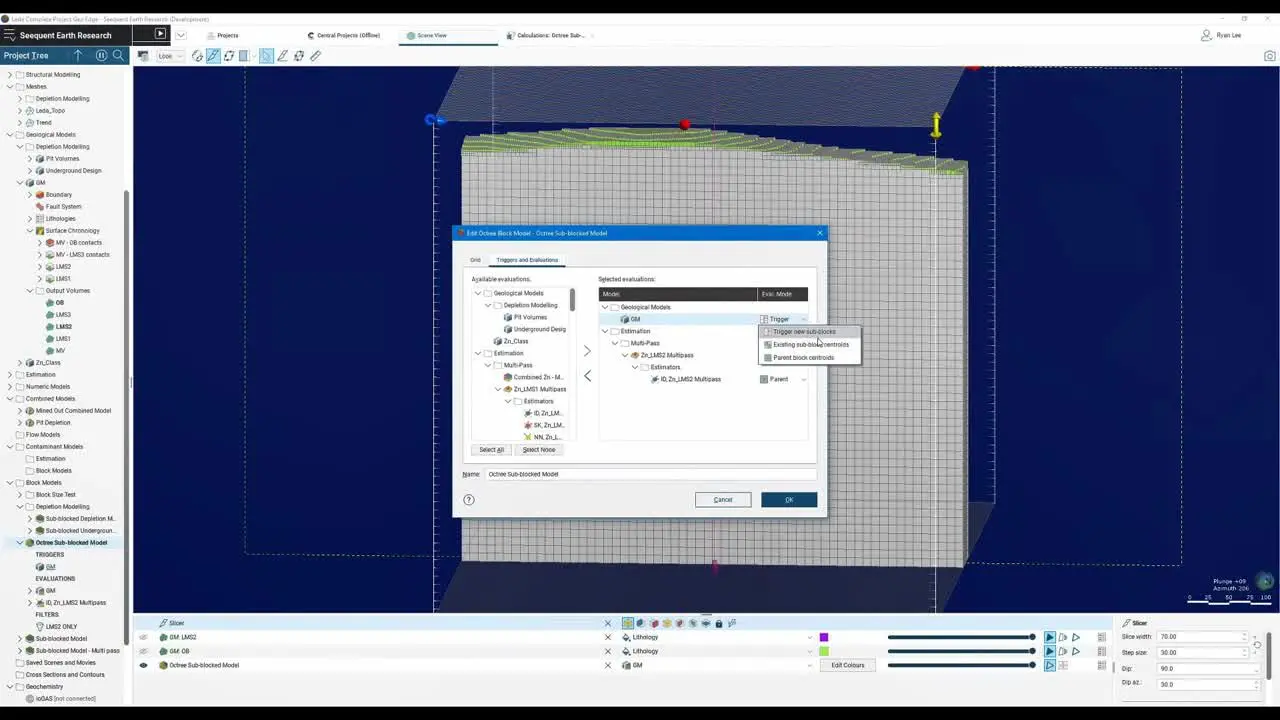

So what I have here is

[00:07:20.080]
a video of the new block model in action.

[00:07:22.850]
So on the release upgrade,

[00:07:24.040]
you will find a new menu option

[00:07:25.260]
for our new octree block model.

[00:07:27.840]
Only create dialogue,

[00:07:29.110]
you’ll see that as quite similar

[00:07:30.180]
to the existing block models.

[00:07:32.350]
However, the minimum block size must be an equal subdivision

[00:07:36.210]
of the parent block size.

[00:07:38.210]
So here you can see that the sub block size

[00:07:40.000]
can be as small as 164th of the parent block.

[00:07:44.460]
When it comes to adding an evaluation

[00:07:46.300]
or triggering sub-blocks,

[00:07:48.160]
you now have one tab instead of two.

[00:07:50.470]
Anything that has a trigger

[00:07:51.640]
will also be added as an evaluation.

[00:07:56.120]
So how do I look at the blocks in the scene?

[00:07:58.630]
You can see the sub blocks

[00:08:00.180]
of minimum block size around those contexts.

[00:08:18.108]
And finally turn on the mesh.

[00:08:19.880]
You can see how those sub blocks have been triggered

[00:08:22.530]
around the ore body.

[00:08:28.340]
So, like I mentioned earlier,

[00:08:29.890]
what this new block model structure

[00:08:32.140]
we’ve also improved our interoperability

[00:08:34.090]
with mine planning softwares

[00:08:35.620]
such as (Indistinct) and Surpac, et cetera.

[00:08:38.930]
You can now import block models

[00:08:40.280]
right into Leapfrog as a CSV.

[00:08:42.810]
And we’re looking at

[00:08:43.643]
how we can still import other block model formats

[00:08:46.560]
going into the future.

[00:08:51.380]
We’re also introducing multiple drillhole databases

[00:08:54.210]
to give you grade control and flexibility

[00:08:56.280]
around your drilling data sources.

[00:08:58.800]
You can now have as many holes as you like.

[00:09:02.030]
And we have enabled the ability to remap

[00:09:04.180]
between different drilling data sources easily.

[00:09:06.630]
For example,

[00:09:07.463]
you can now remap from ODBC to CSV and vice versa.

[00:09:12.560]
In future, we’ll be supporting merging

[00:09:14.380]
between multiple drillhole sets

[00:09:16.350]
to make it easier for you to work with your drilling data.

[00:09:22.410]
And finally, for that May release

[00:09:24.350]
we have the grouped mesh evaluation.

[00:09:27.380]
This is a really important feature as it breaks

[00:09:29.580]
that existing paradigm in Leapfrog

[00:09:31.840]
where a geological model is needed to be created

[00:09:34.900]
to work with the block model.

[00:09:36.070]
And that is no longer the case.

[00:09:38.290]
And so we now support going directly

[00:09:39.930]
from the mesh to the block model

[00:09:42.270]
in the new tool,

[00:09:43.150]
which is faster and less prone to errors.

[00:09:48.390]
So this is what it looks like in action.

[00:09:52.020]
I’ve got a group of three stops

[00:09:54.150]
that I want to evaluate onto the block model.

[00:09:57.230]
Under the combined models folder,

[00:09:58.730]
you’ll find an option to create a new grouped mesh.

[00:10:06.400]
And to this, I can add those same three meshes.

[00:10:14.598]
Here, I can choose whether or not

[00:10:16.360]
I’m classifying all the blocks

[00:10:18.180]
that fall inside or outside the mesh.

[00:10:20.470]
I’ll select inside.

[00:10:22.690]
I can rename what I want the category to be called as.

[00:10:24.970]
Here, I’ll rename it to stone 1

[00:10:27.720]
and I can choose a custom color.

[00:10:37.340]
Now there is a background value,

[00:10:38.810]
so I can optionally classify all blocks therefore,

[00:10:41.180]
outside those mesh volumes

[00:10:42.840]
and set the custom category value.

[00:10:44.810]
Here, I’m also editing that as well.

[00:10:49.880]
So mining is a progressive process and there are overlaps.

[00:10:53.730]
So we allow you to control the hierarchy

[00:10:55.760]
of those overlapping relationships between meshes.

[00:11:06.300]
So this will create a new object in the project tree,

[00:11:08.810]
which can then be used to evaluate other objects

[00:11:10.740]
like block models and points.

[00:11:14.520]
Here, I’ll now apply the evaluation onto the sub blocks

[00:11:17.047]
of the block model.

[00:11:31.980]
So now visualizing a result,

[00:11:33.800]
you can see that all the blocks centroids

[00:11:36.440]
that fell inside that start volume

[00:11:38.440]
will have been classified,

[00:11:39.790]
and this will allow you to easily undertakes

[00:11:43.160]
greater for reporting.

[00:11:53.400]
So that’s what’s coming out very, very soon

[00:11:55.460]
and something you can look forward to.

[00:11:57.280]
But what’s coming up next with Leapfrog,

[00:11:58.790]
a little bit later on,

[00:12:00.810]
And these are again, just some of the feature highlights

[00:12:03.200]
that will really help you in mining.

[00:12:04.810]
And there’s obviously a lot more coming out

[00:12:06.580]
than just what was talked about here today.

[00:12:12.670]
So we’re adding the ability

[00:12:13.880]
to import block models from Central,

[00:12:17.040]
allowing you to work from that single shared block model

[00:12:19.910]
across multiple Leapfrog projects.

[00:12:22.750]
So there’ll be no need to pass a block model

[00:12:24.360]
as a file between different users of Leapfrog.

[00:12:27.280]
And you’ll be able to read and update only the block model

[00:12:30.090]
subsets that you require,

[00:12:31.700]
spin up your workflows as you don’t have to work

[00:12:34.410]
with the full block model every time.

[00:12:41.160]
And we know that in operations,

[00:12:42.930]
you need to visualize the area of interests

[00:12:44.660]
quickly and easily.

[00:12:46.300]
So we add a new features that help you quickly navigate

[00:12:48.730]
the scene to that (indistinct) or level plane.

[00:12:52.270]
And so slicer sets will allow you

[00:12:54.520]
the creation of safe slice planes

[00:12:57.490]
that cut the scene view at specified edibles.

[00:13:04.390]
And we’re going to be improving

[00:13:05.560]
how we visualize block models

[00:13:07.830]
to better support decision-making from the block model.

[00:13:11.030]
And this will enable you

[00:13:11.863]
to have all information you need, easily displayed,

[00:13:15.150]
to make an informed production decision.

[00:13:17.780]
We’ll be adding features such as text labels on block models

[00:13:20.920]
and showing blocks as an outline.

[00:13:28.040]
And this feature of proportional weighting

[00:13:29.920]
will allow for accurate reports of mining volumes

[00:13:32.270]
to reproduce without the need to create any sub blocks.

[00:13:36.180]
And you can see in the figure there,

[00:13:37.660]
it works by calculating the proportion of the mesh boundary,

[00:13:40.940]
there is a distinct in each block,

[00:13:42.720]
and we’ll add a new column to the block model

[00:13:44.580]
that can then be used to weight values in reports.

[00:13:50.610]
And finally, we’re improving our polyline tool.

[00:13:53.420]
Adding new snapping options,

[00:13:54.960]
the ability to copy and move the polyline

[00:13:57.180]
and to extrude the 2D lines to form closed meshes

[00:14:04.740]
So that brings us to the end.

[00:14:07.440]
Thank you all for joining.

[00:14:08.770]
And look out in the next couple of months

[00:14:11.270]
for that new Leapfrog release

[00:14:12.350]
with some of those new features.

[00:14:15.260]
Please continue to let us know your feedback and insights

[00:14:17.690]
as it helps inform how we make your job easier

[00:14:20.570]
and what we work on next.

[00:14:22.922]
So, yeah, I’ll now hand over to Peter

[00:14:24.980]
to open the floor for any questions.

[00:14:28.890]
<v Peter>Thank you very much, Ryan</v>

[00:14:29.870]
for taking us through the roadmap

[00:14:31.430]
for mining operation workflows.

[00:14:34.290]
There’s a lot of really cool stuff there,

[00:14:36.020]
and I am really excited

[00:14:37.450]
to start testing them and using them for real.

[00:14:42.580]
As Ryan mentioned,

[00:14:44.010]
it’s now time for questions and answers.

[00:14:47.860]
If you could either, you could put your questions

[00:14:50.280]
into the questions box there in the webinar.

[00:14:53.460]
I’ll go to webinar panel and I’ll read them.

[00:14:57.210]
You have a moment while questions come in.

[00:15:03.630]
It looks like we have a question.

[00:15:05.480]
Can you remind us, please Ryan,

[00:15:07.500]
when can we expect the first of the new features

[00:15:10.530]
to be released.

[00:15:13.560]
<v Ryan>In May, May this year.</v>

[00:15:15.370]
So that’s the new block model importing sub-block models,

[00:15:18.410]
the grouped mesh evaluation tool, and others.

[00:15:24.170]
<v Peter>Sounds good, all right.</v>

[00:15:28.030]
And another question is about the exchange formats.

[00:15:33.930]
We support OMF, can you tell us what that is please?

[00:15:42.210]
<v Ryan>So the open mining format is as a format</v>

[00:15:45.510]
that has come from a committee of different software vendors

[00:15:49.060]
and the GMG committee.

[00:15:50.860]
And so it’s enabling better interoperability

[00:15:53.550]
between software packages

[00:15:56.380]
and so making it easier to exchange their geoscience data.

[00:16:00.530]
So that sort of format that can hold a range of data,

[00:16:04.430]
block models, drillholes, lines, points,

[00:16:09.640]
there’s just one full extension that you can pass around.

[00:16:13.260]
<v Peter>Great, I am familiar that we’re using</v>

[00:16:16.730]
that currently at Leapfrog Geo to interface

[00:16:19.480]
with Oasis Montaj for a geophysical grids

[00:16:22.480]
and the like, so.

[00:16:24.040]
<v Ryan>Yeah.</v>

[00:16:29.400]
<v Peter>There is a another question her.</v>

[00:16:31.820]
I’m having trouble reading it in the panel

[00:16:35.160]
because it shrunk.

[00:16:39.970]
When do you think OMF will include sub-blocked models?

[00:16:47.200]
This is from Richard Inglis.

[00:16:49.740]
<v Ryan>So then you, if your block model has</v>

[00:16:54.920]
the same block size in the X, Y, and Z axis

[00:16:58.500]
all may have full support the transfer of these new

[00:17:01.000]
octree style grids.

[00:17:02.578]
By the moment OMF doesn’t support variable

[00:17:05.218]
octree block models.

[00:17:07.630]
So you want to be able to transfer for the rest.

[00:17:11.640]
<v Peter>Thank you.</v>

[00:17:15.690]
Okay, there aren’t any more questions,

[00:17:17.650]
and I guess we don’t want to have too much dead air,

[00:17:19.970]
so I guess we could wrap it up.

[00:17:22.910]
Thank you again, Ryan.

[00:17:24.500]
And thank you everyone for attending this presentation.

[00:17:27.480]
I hope you found it as interesting as I did and worthwhile.

[00:17:31.550]
(upbeat music)
