Проверка (валидация) является неотъемлемой частью процесса геологического моделирования для обеспечения надежной модели.

С помощью Leapfrog Geo и Central вы можете создавать полностью интегрированные рабочие процессы для своей рабочей группы. Добавляйте данные или пересматривайте свои интерпретации на любом этапе, и эти изменения распространятся на следующие этапы, не требуя дополнительной настройки (создания скриптов / программирования) для быстрого обновления, проверки и эффективного принятия решений.

Проверка (валидация) является неотъемлемой частью процесса геологического моделирования для обеспечения надежной модели. С помощью Leapfrog Geo и Central вы можете создавать полностью интегрированные рабочие процессы для своей рабочей группы. Добавляйте данные или пересматривайте свои интерпретации на любом этапе, и эти изменения распространятся на следующие этапы, не требуя дополнительной настройки (создания скриптов / программирования) для быстрого обновления, проверки и эффективного принятия решений.

Присоединяйтесь к Джиллиан Джеймс, проектному геологу из Seequent, чтобы обсудить следующие темы:

Проверка базы данных скважин
Вопросы проверки визуализации
Использование статистических инструментов Leapfrog для проверки вашей модели
Использование фильтров запросов для проверки зон вашей модели
Загрузка в Central для проверки коллегами и окончательного утверждения

Обзор

спикеров

Джиллиан Джеймс (Jillian James)
Проектный геолог, Seequent

Продолжительность

23 минуты

Смотреть больше видео по запросу

Видео

Узнайте больше о решении Seequent для горнодобывающей промышленности

Узнать больше

Расшифровка видеозаписи

[00:00:03.980]
<encoded_tag_open />v Jillian<encoded_tag_closed />Hi, everyone.<encoded_tag_open />/v<encoded_tag_closed /><!— wpml:html_fragment —>
[00:00:04.930]
Thank you for taking the time to join me today
[00:00:07.330]
for this Tip Tuesday on validating your Leapfrog Geo model.
[00:00:12.110]
My name is Jillian James,
[00:00:13.680]
and I’m a project geologist here in Seequent’s Perth Office.
[00:00:18.200]
Seequent has a range of software
[00:00:20.090]
for use throughout the exploration and mining value chain.
[00:00:24.600]
Today, the focus will be on the functionality
[00:00:28.030]
in Leapfrog Geo with a brief introduction
[00:00:31.010]
to Seequent Central.
[00:00:35.580]
The key aims of this session
[00:00:37.340]
are to give you some tips and tricks
[00:00:39.630]
on how to validate your Leapfrog Geo model
[00:00:42.500]
and make validation an integral part of the modeling process
[00:00:46.640]
rather than just an afterthought.
[00:00:50.121]
In this session, we’ll cover:
[00:00:52.520]
how to check the data feeding into your model is validated,
[00:00:57.040]
tips on section by section validation,
[00:01:00.940]
how you can use Leapfrog Geo statistical tools
[00:01:03.860]
to validate your model,
[00:01:06.400]
how you can use query filters to test areas of your model,
[00:01:10.760]
for example, if you want to test where the model was barren,
[00:01:14.670]
but the grades are above a certain value,
[00:01:18.200]
where the model was mineralized,
[00:01:20.140]
but the grades are below a certain value,
[00:01:23.750]
and where the geology log does not match the model geology.
[00:01:29.540]
Finally, we will look at how to upload your project
[00:01:32.480]
to Central for peer review and final validation.
[00:01:38.800]
The most important step in validating any geological model
[00:01:43.520]
is to check that the data
[00:01:44.960]
feeding into the model is validated.
[00:01:48.270]
Remember, rubbish in equals rubbish out.
[00:01:52.980]
Things you should check include looking to see
[00:01:57.110]
that all the data is included in your project,
[00:02:00.710]
including any unmineralized holes,
[00:02:05.150]
understanding the impact that missing
[00:02:07.210]
and null values may have on your model,
[00:02:09.640]
and how the replacement rules are being implemented.
[00:02:15.120]
Are there any extreme outliers, highs or lows,
[00:02:18.290]
in your dataset?
[00:02:21.840]
Does the data look to be in the correct spatial location
[00:02:25.970]
relative to things such as development and topography?
[00:02:30.490]
And are there any duplicate points or overlapping intervals?
[00:02:37.280]
Leapfrog Geo automatically identifies and flags
[00:02:40.890]
common data errors when data tables are imported.
[00:02:45.200]
Until errors are corrected,
[00:02:48.150]
the rows that contain those errors are excluded.
[00:02:51.980]
For example, if the ID for a color
[00:02:54.510]
contains an invalid coordinate,
[00:02:57.050]
that color will not be displayed in the scene
[00:02:59.860]
as its location is not known.
[00:03:03.230]
This will also affect any downstream processing
[00:03:06.910]
and it will ignore any data associated with this drillhole.
[00:03:12.060]
We will now move into the software
[00:03:14.170]
to look at this in more detail.
[00:03:18.830]
This session will not cover building domains from scratch.
[00:03:22.850]
So throughout the demonstration,
[00:03:24.740]
I am going to make use of a project already created
[00:03:28.100]
using the saved scenes to show the functionality.
[00:03:32.720]
I’m going to use a dataset from a real underground goldmine
[00:03:36.210]
that has since been mined out.
[00:03:38.780]
Data locations and names have been changed
[00:03:41.330]
to keep the project anonymous.
[00:03:44.430]
Although I am demonstrating this functionality
[00:03:47.230]
with respect to our underground narrow vein gold system,
[00:03:51.060]
these validation tools can be useful
[00:03:53.370]
in almost any deposit style or geological setting.
[00:03:58.180]
If you need help with your individual project,
[00:04:00.900]
please don’t hesitate to contact
[00:04:02.800]
our friendly support team to assist you.
[00:04:07.840]
I will begin with validating the drillhole database.
[00:04:12.620]
Over in my project tree,
[00:04:14.240]
you can see I have a diamond drillhole database here
[00:04:17.930]
and I’ve imported all these various table types
[00:04:21.890]
to build my database.
[00:04:24.810]
The red exclamation marks here on my assay, geology,
[00:04:28.420]
and vein codes indicate that there is possibly an error.
[00:04:34.090]
The orange exclamation mark on my survey
[00:04:36.880]
indicates there is a warning.
[00:04:40.070]
The blue downward pointing arrow
[00:04:43.500]
indicates that the data has been imported correctly
[00:04:46.920]
and there is no errors to fix.
[00:04:50.960]
To fix an error, I right-click on one of these tables
[00:04:54.510]
that has an error and select fix errors.
[00:05:00.890]
This will open up a new tab
[00:05:04.467]
and it will show me where these errors are occurring.
[00:05:09.720]
This assay table actually has no errors,
[00:05:13.190]
but it has some invalid values handling.
[00:05:18.970]
If we look at this AU_PPM one,
[00:05:22.010]
we can see that some rules have been applied
[00:05:25.210]
to the non-positive values.
[00:05:28.150]
So by default, it is going to replace them with 0.01.
[00:05:33.370]
However, other rules have been applied
[00:05:36.870]
for other values with the general rule of thumb
[00:05:40.980]
usually replacing them with half the detection limit.
[00:05:50.470]
Leapfrog Geo identifies a range of common errors
[00:05:54.580]
and all errors identified are grouped by type.
[00:05:59.930]
You can click on any error
[00:06:01.840]
and expand it to find out more information.
[00:06:05.340]
Some errors will involve you
[00:06:06.730]
going back to the original database and fixing them
[00:06:10.360]
and some errors can be ignored within Leapfrog Geo.
[00:06:16.660]
Once the errors in the database are fixed and validated,
[00:06:20.530]
you can be sure your model will have the most up-to-date
[00:06:23.730]
accurate data feeding into it.
[00:06:30.070]
Next, I can check that my drillhole data
[00:06:33.240]
that I have imported is in the correct location
[00:06:36.650]
to some of my features such as my topography
[00:06:43.000]
and development drives.
[00:06:46.690]
I can rotate in the 3D scene
[00:06:50.380]
to check for any error in the survey data
[00:06:53.540]
and ensure my drillholes are where I expect them to be.
[00:07:00.330]
Using the slicer tool,
[00:07:01.990]
I can then look at validating my model
[00:07:04.400]
on a section by section basis.
[00:07:07.280]
Here, I’m looking down on a Z section at the 852 RL.
[00:07:13.100]
This shows that my mineralization model
[00:07:15.640]
is following these development drives.
[00:07:20.400]
If I step through a few more sections
[00:07:23.440]
using the greater than or less than keys on my keyboard
[00:07:27.730]
on a set step width,
[00:07:29.980]
I can see the model changes at other RLs
[00:07:34.390]
and how this matches my development.
[00:07:43.920]
Alternatively, I can do this process
[00:07:47.050]
on a vertical cross-section.
[00:07:49.700]
Here, I am looking north through a slice of my model
[00:07:53.070]
with development drives and drillholes.
[00:07:56.770]
If I stepped through my model using the greater than
[00:07:59.990]
or less than keys on my keyboard,
[00:08:03.950]
you can visually validate that your model
[00:08:08.150]
is matching those development drives
[00:08:11.610]
and following any drillhole logging or assays.
[00:08:20.050]
This method is one of the more traditional ways
[00:08:22.540]
to validate a model and it can be quite time-consuming.
[00:08:27.030]
Leapfrog also has some other unique tools
[00:08:29.680]
that help you identify areas of your model
[00:08:32.000]
that may require further investigation.
[00:08:35.550]
The first tool I will show you
[00:08:37.040]
is the correlation statistical tool.
[00:08:40.210]
This shows you the correlation between the model geology
[00:08:43.550]
and the log geology.
[00:08:46.170]
To do this, you need to evaluate your mineralized model
[00:08:49.657]
and your geological model onto your drillholes.
[00:08:54.300]
You do this by right-clicking on your drillhole database
[00:08:59.040]
and selecting new evaluation table.
[00:09:03.835]
I have already completed this process
[00:09:06.660]

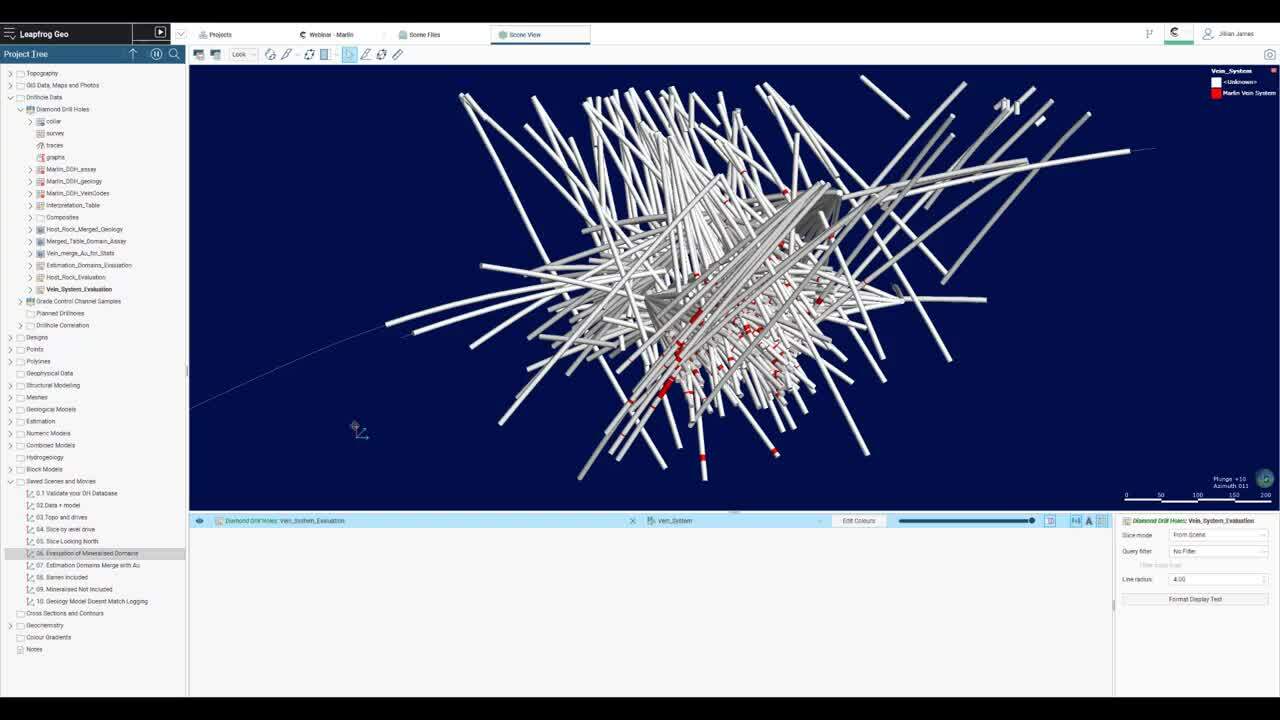

and if I bring this evaluation of my mineralized domains
[00:09:10.660]
into my scene and have a look,
[00:09:13.490]
you can see it shows me
[00:09:16.410]
where my mineralized domains are on my drillholes.
[00:09:25.530]
Once I have a evaluation table set up,
[00:09:29.250]
I then can come to their evaluation in my project tree,
[00:09:34.320]
right-click and select statistics.
[00:09:41.030]
This will bring up a correlation statistics table
[00:09:44.850]
showing me my drilling lithology, my drilling length,
[00:09:50.180]
my matching length, matching percent,
[00:09:54.870]
non-matching length, and non-matching percent of my model.
[00:10:04.922]
In this example,
[00:10:05.755]
I’ve shown this for the mineralized vein system,
[00:10:08.700]
but this can also be used to test an entire geological model
[00:10:12.620]
to determine where more refinement is needed.
[00:10:19.970]
Alternatively, you can create a merged table
[00:10:23.180]
of your evaluated domains with your original assay data,
[00:10:27.790]
and then look at the statistics
[00:10:29.770]
to help validate your domains.
[00:10:32.920]
You do this up here in the drillhole database,
[00:10:38.830]
right-click on your drillholes and select new merged table.
[00:10:44.390]
Again, I’ve already created this
[00:10:46.890]
where I’ve merged my vein lithologies for my domain
[00:10:52.340]
with my gold grades.
[00:10:56.420]
I think can right-click on this table and select statistics.
[00:11:04.360]
You then can choose which type of statistics
[00:11:06.757]
you want to look at.
[00:11:08.380]
Firstly, I’ll look at this table of statistics
[00:11:12.760]
and this will open up a new tab showing you your domains
[00:11:19.000]
with the mean grade, standard deviation, variance,
[00:11:23.630]
and quantile data for each of your domain codes.
[00:11:34.210]
You can also do this for a box plot.
[00:11:37.710]
Again, right-click on your merged table, select statistics,
[00:11:44.100]
choose the box plot option
[00:11:49.070]
where you can view each of your domains as a box plot
[00:11:54.080]
to get a visual indication of where any outliers are
[00:11:58.420]
within your domains
[00:12:00.540]
and the main grades of each of these domains.
[00:12:07.000]
I’ve applied a log scale to this chart
[00:12:10.010]
to help see this better
[00:12:12.840]
as the status here is very negatively skewed.
[00:12:20.030]
I can also have a look at the histogram of a single domain.
[00:12:24.780]
This will allow me to examine the data distribution
[00:12:27.700]
within the domain and check it’s forming a population
[00:12:31.130]
that meets the assumptions of stationarity.
[00:12:34.540]
This is where the mean and variance
[00:12:36.130]
do not change across the domain
[00:12:38.700]
and will enable it to be used in downstream estimation
[00:12:42.230]
or numeric modeling.
[00:12:44.750]
To do this, I come to the merged table, open it up,
[00:12:50.130]
and come to the numeric data of interest,
[00:12:54.560]
right-click and select statistics.
[00:12:59.330]
This will open up a new tab
[00:13:03.240]
showing us the histogram of the data.
[00:13:07.280]
Here, I can apply a query filter.
[00:13:10.550]
I’ve built one just for this 4,400 domain
[00:13:14.090]
so I’m only looking at the data within that domain.
[00:13:18.650]
I can then detach this
[00:13:25.890]
and have a look at where some of the anomalous grades
[00:13:29.110]
are occurring in my scene view.
[00:13:32.970]
I will hide some of these estimation domains
[00:13:36.700]
and demonstrate how you do this.
[00:13:39.770]
So if I feel anything above this area was anomalous,
[00:13:44.300]
I could highlight and then I could have a look in my scene
[00:13:49.490]
to see if that is actually sporadic
[00:13:53.770]
or is it forming another domain population.
[00:13:59.860]
In relation to this 4,400,
[00:14:02.530]
if I turn that on and turn down the translucency,
[00:14:08.570]
I can see that this is pretty sporadic across my domain.
[00:14:16.060]
I can reattach that tab
[00:14:20.370]
and then I can also look at the histogram of the log
[00:14:26.116]
or the cumulative histogram.
[00:14:35.340]
Once you have a merged table
[00:14:37.420]
of your evaluated domains with grade,
[00:14:40.440]
you can then utilize query filters
[00:14:42.830]
to test things in your model.
[00:14:45.900]
Here in my scene, I have applied a query filter
[00:14:50.290]
to show me where there are bearing grades
[00:14:52.780]
included within my mineralized model.
[00:14:56.150]
I’ve created this query filter
[00:14:58.200]
by right-clicking on my merged table
[00:15:02.140]
and selecting new query filter.
[00:15:05.810]
I’ve previously built this so open this one up for you
[00:15:09.870]
and you can see the syntax applied to build that query.
[00:15:14.530]
We also have the easy build query function
[00:15:18.520]
where you can come in and apply your query.
[00:15:22.020]
Here, I’ve selected where my AU_PPM
[00:15:25.340]
is less than or equal to 0.3
[00:15:30.890]
and my estimation domains
[00:15:33.190]
are within these four domains shown.
[00:15:37.210]
We also have the advanced query filter builder
[00:15:41.030]
that you can utilize for your project.
[00:15:47.130]
Once I’ve built my query filter,
[00:15:49.110]
I can drag and drop that in the scene
[00:15:51.570]
and that query will be applied.
[00:15:54.210]
You can also apply the query filter
[00:15:56.340]
over here in your properties.
[00:16:00.330]
If I zoom in and look around my project,
[00:16:03.430]
I can now see areas that I need to go and investigate
[00:16:06.970]
to understand why these barren grades have been included
[00:16:11.100]
within my mineralized model.
[00:16:16.220]
Next, I can use a similar process
[00:16:18.860]
to test where I have mineralized grade
[00:16:21.690]
that has not been included in my mineralized model.
[00:16:25.810]
Here in the scene,
[00:16:26.680]
you can see I have applied this query filter
[00:16:29.680]
and I’ve built it by right-clicking again,
[00:16:33.380]
selecting new query filter.
[00:16:38.670]
And if I come into my prebuilt query filter, open that up,
[00:16:44.230]
you can see I’ve done the reverse of our first one
[00:16:47.690]
where I’ve said if it’s greater than or equal to 0.3
[00:16:52.140]
and it’s not in our domains,
[00:16:55.100]
then it’s considered mineralized outside of the domains.
[00:17:01.000]
This is then being applied in my scene.
[00:17:04.750]
And in this example,
[00:17:05.790]
you can see there’s quite a lot outside my model.
[00:17:09.660]
That is because there is actually quite a few
[00:17:13.336]
unmodeled domains in this project.
[00:17:19.850]
You can also use query filters to test areas of your model
[00:17:24.760]
to see where geology code logged
[00:17:27.060]
does not match geology modeled.
[00:17:30.870]
To do this, I’ve created an evaluation of my host rock model
[00:17:36.300]
and merged that with my geological lithology table.
[00:17:41.540]
I’ve then built a query filter here
[00:17:44.260]
to test where my end site is outside my model.
[00:17:49.660]
If I have a look at my scene,
[00:17:51.580]
I can rotate and zoom in on some of these areas,
[00:17:56.990]
click on a hole and I can go and investigate
[00:17:59.930]
why that is outside that geology unit.
[00:18:08.250]
If I did want to examine a hole in more detail,
[00:18:11.400]
I can use the drillhole correlation tool
[00:18:14.200]
here under my drillhole database
[00:18:18.460]
to examine in further detail.
[00:18:21.110]
I right-click on this and select new drillhole set,
[00:18:25.200]
which brings me out to a new drillhole set tab.
[00:18:28.830]
I then select the pit color function,
[00:18:32.770]
which will take me back to my scene view.
[00:18:35.900]
I then choose my select drillhole button
[00:18:40.320]
and choose the hole I’m interested.
[00:18:44.260]
I then can click save
[00:18:46.810]
and then it would appear here in my drillhole set layer
[00:18:52.340]
where I can bring across my host rock
[00:18:56.630]
model
[00:18:58.510]
and my original logging.
[00:19:01.400]
And then I can come in and identify
[00:19:04.700]
why I have these different areas
[00:19:08.090]
within my model versus my logging.
[00:19:14.120]
The final validation step for any project
[00:19:17.290]
is always to have your project peer reviewed
[00:19:19.920]
by one of your colleagues.
[00:19:22.580]
To do this, we are going to use Seequent Central.
[00:19:25.920]
I will show you this briefly.
[00:19:28.120]
However, we have another webinar on this
[00:19:30.560]
that was completed earlier this year
[00:19:33.210]
by one of my colleagues,
[00:19:34.540]
so please feel free to check out this video recording
[00:19:37.690]
on the Seequent website.
[00:19:40.400]
To upload your project,
[00:19:42.140]
you will need to be connected to the Central server.
[00:19:45.720]
You can do so by connecting up here
[00:19:47.850]
in your right-hand corner.
[00:19:50.210]
Once you are connected, you select publish.
[00:19:59.010]
You select which objects you would like to appear
[00:20:01.700]
in your online web browser.
[00:20:06.740]
Select next.
[00:20:09.240]
Set your project workflow stage.
[00:20:11.780]
I’m going to choose peer review for this one.
[00:20:14.930]
Select next.
[00:20:17.520]
Add in any revision notes for your colleagues
[00:20:21.390]
and then select next to start the publish and upload.
[00:20:32.420]
Once your project has finished publishing,
[00:20:35.350]
it will say publish successful here in the dropdown menu,
[00:20:39.530]
and it will be available for your colleagues to download
[00:20:43.070]
if they have the right permissions and access to Central.
[00:20:48.110]
It is also now available via the web browser
[00:20:53.690]
for non-Leapfrog Geo users such as managers
[00:20:57.310]
to review via Web-Verse and make comments.
[00:21:01.960]
To do this, you can select go to portal
[00:21:09.040]
and this will take you to the appropriate web browser
[00:21:13.720]
where your project is stored.
[00:21:17.000]
As you can see, it’s got the revision note
[00:21:20.300]
saying please review this project.
[00:21:23.270]
It’s got the stage of peer review
[00:21:26.240]
and it’s got the user who uploaded that project.
[00:21:30.260]
You can then select the project
[00:21:33.250]
to view within the web browser,
[00:21:36.250]
come to your geological model,
[00:21:38.900]
open up your domains and have a look at these
[00:21:43.610]
without needing access to a Leapfrog Geo license.
[00:21:57.260]
Comments can then be made by clicking on this comment button
[00:22:04.040]
and selecting add comments.
[00:22:06.670]
These can be geo tagged on your domain
[00:22:11.200]
and you can tag your colleagues here
[00:22:13.190]
so they get an instant notification
[00:22:16.300]
on any area to go and look at in further detail.
[00:22:23.400]
That brings me to the conclusion of today’s webinar.
[00:22:27.020]
If you require any further information,
[00:22:30.040]
please refer to the Seequent website,
[00:22:32.280]
which has many blogs, webinar recordings, and videos
[00:22:36.435]
to help you with your learning.
[00:22:37.770]
We also have a great series of free online courses
[00:22:40.950]
to help up-skill which can be found
[00:22:44.180]
under your MySeequent account.
[00:22:47.040]
If you do need any additional help,
[00:22:49.520]
please reach out to your local support team
[00:22:51.610]
who will be willing to assist.
<wpml_invalid_tag original=»PHA+» />[00:22:57.670]
Thank you.

Технический вторник: Проверка вашей геологической модели при помощи Leapfrog

Проверка (валидация) является неотъемлемой частью процесса геологического моделирования для обеспечения надежной модели.

Обзор

Смотреть больше видео по запросу

Узнайте больше о решении Seequent для горнодобывающей промышленности

Расшифровка видеозаписи
